Routing rules are flexible and personalised. They enable you to accurately define how and to which respondent your conversations should be distributed via the assignation methods.
Here are the 3 assignation methods available within our platform:

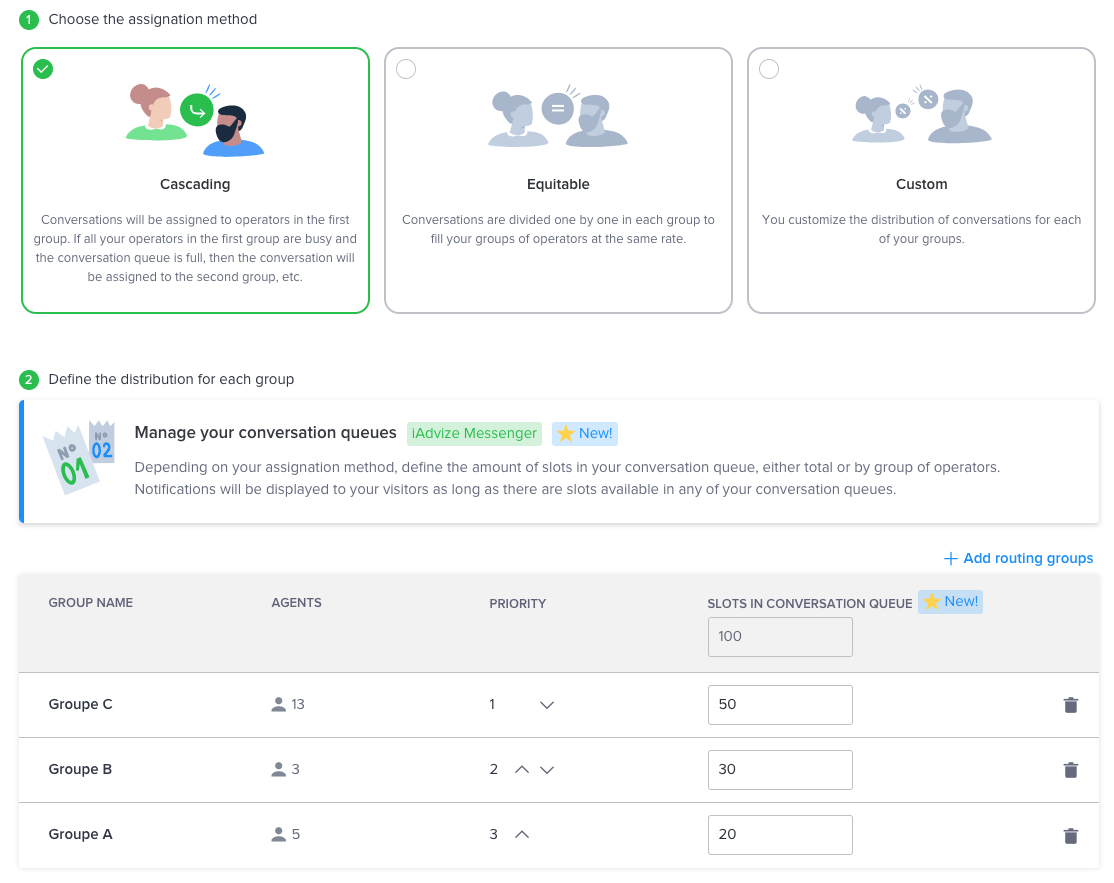

Overflow occurs depending on the occupation of the selected routing groups and the order defined by the administrator.
When the threshold for conversation queues is set to 0 :
You only engage visitors if your agents are available to receive conversations in real-time.
- Routing group B's threshold set to 30
- Routing group C's threshold set to 20
Conversations will first arrive in routing group A's conversation queue. If group A's conversation queue is full (full when reaching 50 conversations), new conversations will arrive in group B's queue, and so on.
When all the conversation queues of each group associated with your routing rule are full, i.e. the number of 100 pending conversations has been reached, then no more visitors will be engaged.
NB : It is not recommended to choose the cascade distribution method for conversations with third party channels (WhatsApp, Facebook, Apple...), as the availability of the groups is not checked and the conversations are by default queued to the first distribution group (here A). Prefer the custom distribution rule to make a distribution.

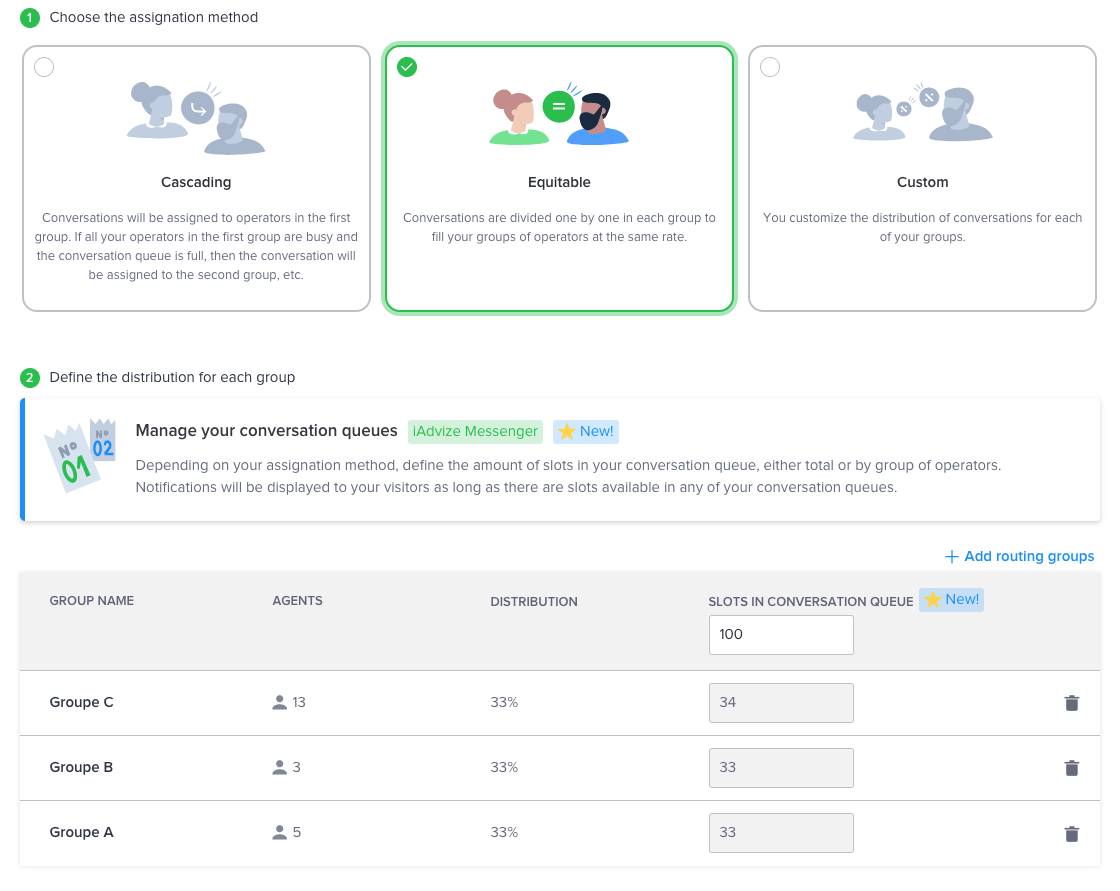

When the threshold for conversation queues is set to 0 :
You only engage visitors if your agents are available to receive conversations in real-time.
For example, if you have defined a threshold of 100 conversations for your routing rule and with 3 routing groups whose distribution is as follows: A:50% B:35% C:15; new conversations will then be distributed in turns to the conversation queues according to the routing system selected.
- 1 for group A's conversation queue
- 1 for group A's conversation queue
- 1 for group A's conversation queue
- 1 for group B's conversation queue
- 1 for group B's conversation queue
- 1 for group C's conversation queue
- And so on and so on
When all the conversation queues of each group associated with your routing rule are full, i.e. the number of 100 pending conversations has been reached, then no more visitors will be engaged.
When all the conversation queues of each group associated with your routing rule are full, i.e. the number of 100 pending conversations has been reached, then no more visitors will be engaged.
N.B. Whether a conversation queue is set to 0 or not, if a routing group is increasingly lagging behind according to the target percentage, the routing engine favours it in the distribution for the group to catch up (conversations are distributed in priority to the groups furthest from its target percentage).
NB: The counters for the number of conversations distributed per routing group are reset every day at midnight (based on the project timezone). This is valid for both fair and personalized distribution.

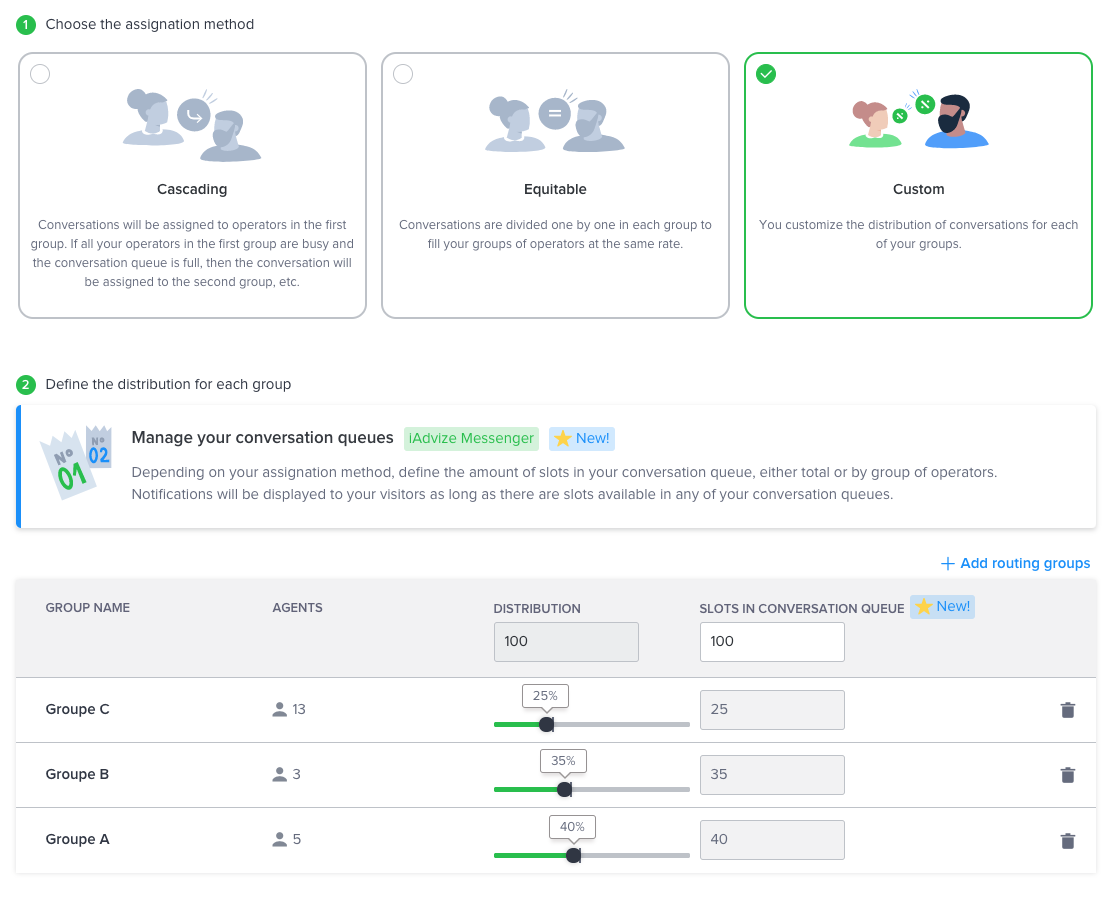

For a personalised routing defined between 3 routing groups A, B, C:
Conversations are distributed in turns to routing groups A, B, and C and then distributed to groups furthest from their target percentage.
When the threshold for conversation queues is set to 0 :
You only engage visitors if your agents are available to receive conversations in real-time.
For example, if you have defined a threshold of 100 conversations for your routing rule and with 3 routing groups whose distribution is as follows: A:50% B:35% C:15%; new conversations will then be distributed in turns to the conversation queues according to the routing system selected.
- 1 for group A's conversation queue
- 1 for group A's conversation queue
- 1 for group A's conversation queue
- 1 for group B's conversation queue
- 1 for group B's conversation queue
- 1 for group C's conversation queue
- And so on and so on
N.B. Whether a conversation queue is set to 0 or not, if a routing group is increasingly lagging behind according to the target percentage, the routing engine favours it in the distribution for the group to catch up (conversations are distributed in priority to the groups furthest from its target percentage).
How are conversations handled?
When the threshold for conversation queues is set to 0 :
Agents from each group receive the conversations in real-time when logged in to their conversation panel and available.
If a rule 1 exists with
- Group 1 - 50 places
- Group 2 - 20 places
Conversations will fill the queue in Group 1, before being able to flow into Group 2
Equitable / Custom assignation
If a rule 1 exists with
- Group 1 - 50% - 50 places
- Group 2 - 50% - 20 places
Conversations will be allocated according to the 50/50 sliding hour target.
NB : In our example, for group 1, it is possible to compensate for the equitable distribution that would deprive group 1 of conversations by placing 30 agents in group 1 and 50 in group 2.
How the distribution of conversations works
